Resource Apps

An app is what Plakar Control Plane uses to work with a resource of an inventory. It holds the integration and the configuration, such as credentials, needed to reach the resource, and its type defines what the resource is used for:

• Source: the resource is backed up.
• Store: the resource holds a Kloset store that backups are written to.
• Destination: data is restored to the resource.

A backup reads from a source app and writes to a store app. A restore reads from a store app and writes to a destination app.

flowchart LR
  Resource["Resource"] -->|"Source App"| PCP["Plakar Control Plane"]
  PCP -->|"Store App"| Store["Kloset Store"]

flowchart LR
  Store["Kloset Store"] -->|"Store App"| PCP["Plakar Control Plane"]
  PCP -->|"Destination App"| Resource["Resource"]

A resource can have any number of apps, of any type. Each app has a name, which tells apart the apps of the same type on one resource. Apps belong to the organization of their inventory, and what can be done with them depends on the permissions held in that organization.

Setting up an app

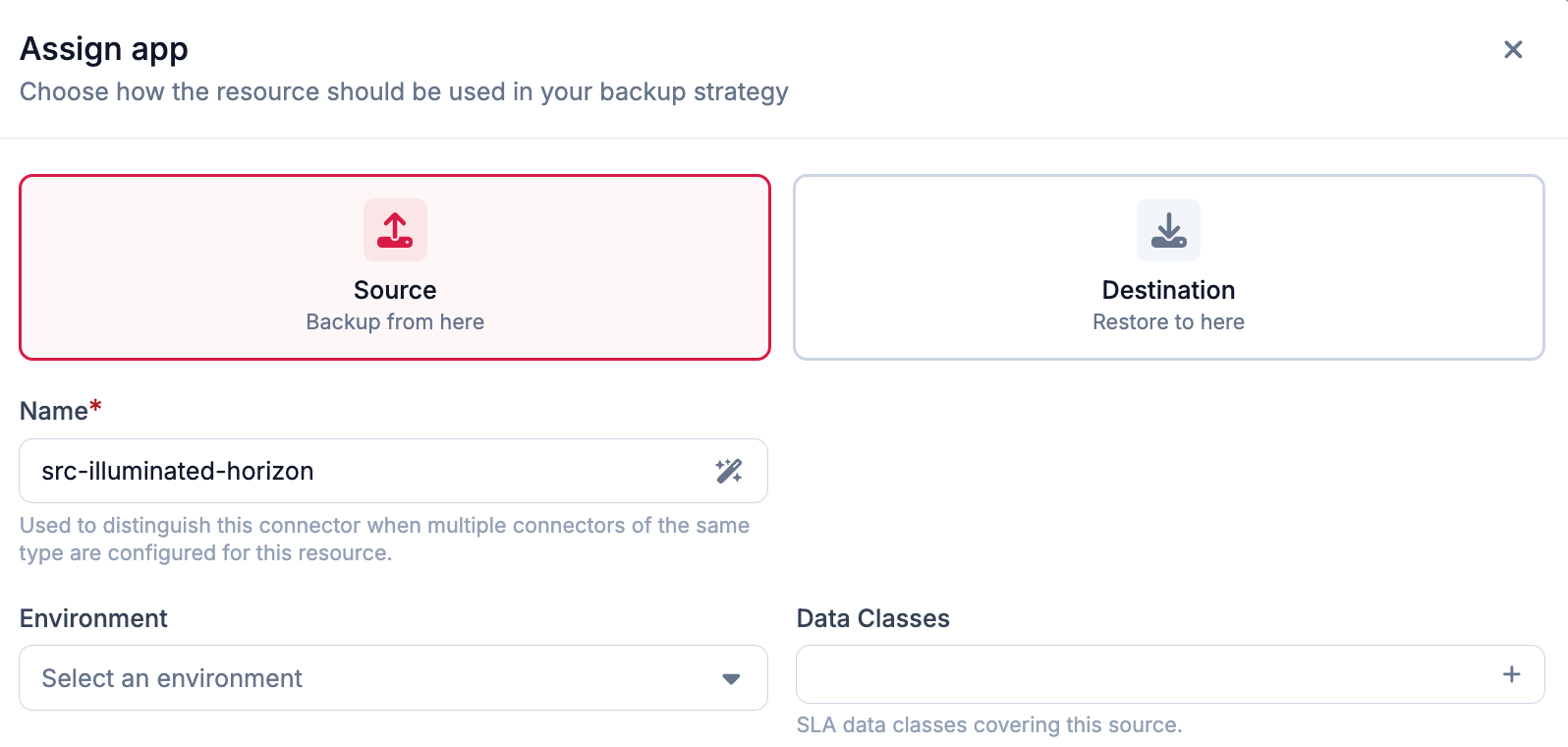

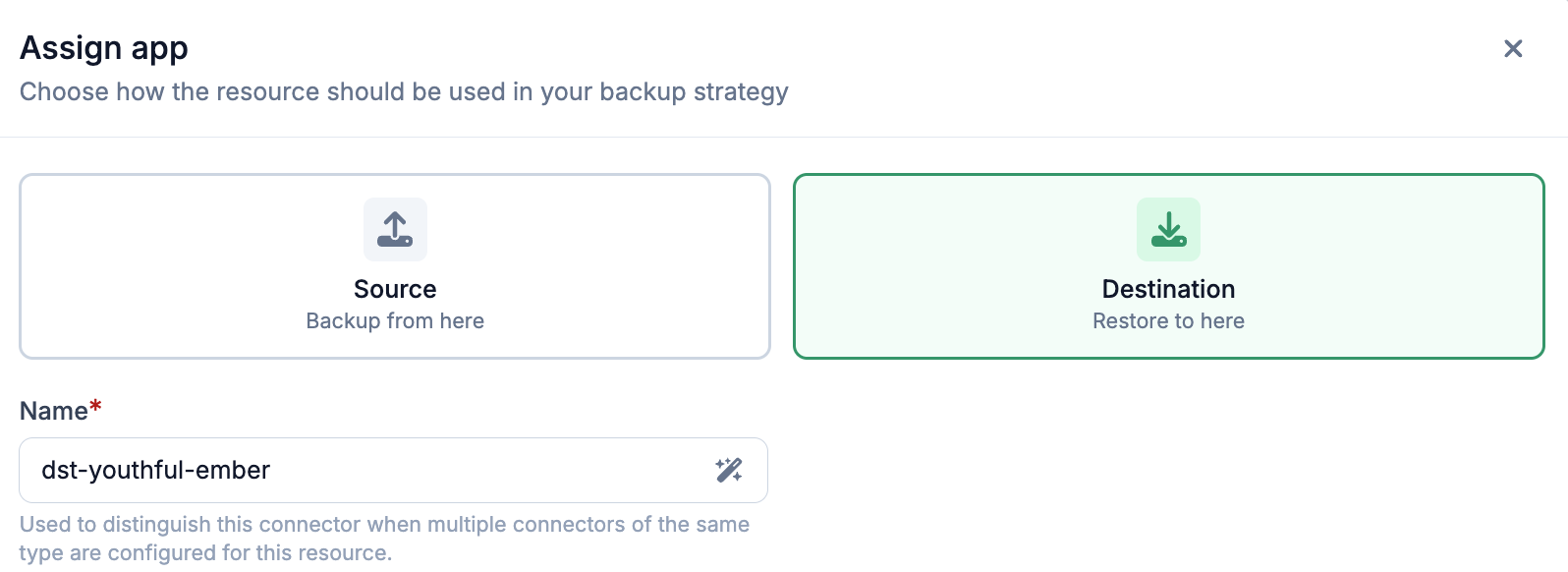

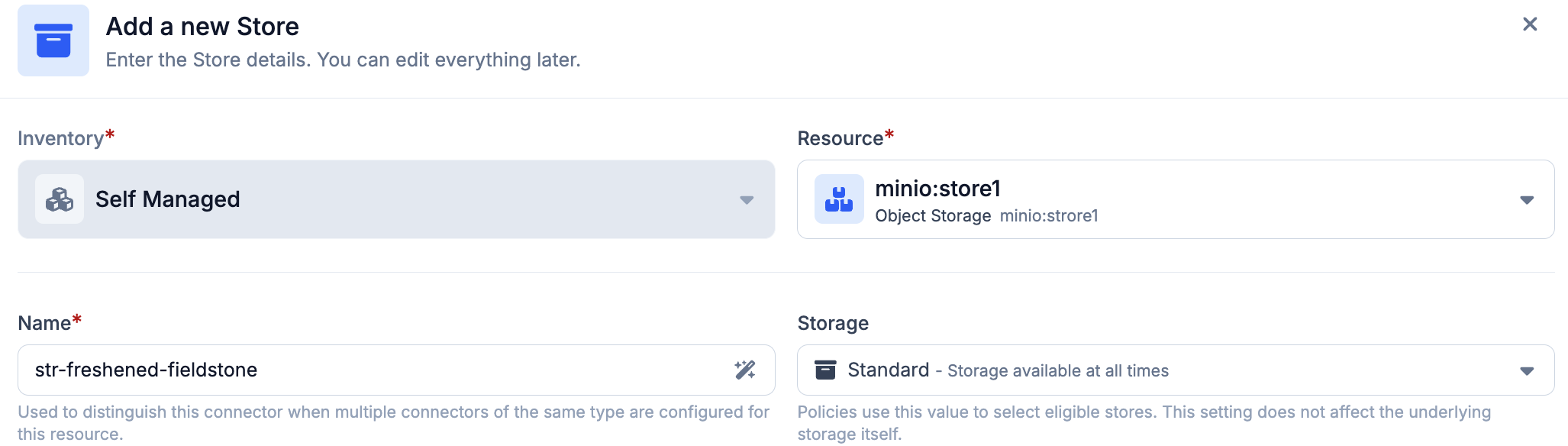

Source and destination apps are set up on a resource, from the Apps tab of the resource in its inventory, with Assign App. Store apps are created from the Stores tab of the inventory instead. See more on store app documentation.

An app uses an integration to reach its resource. The class and subclass of the resource narrow the installed integrations down to those that support it. When only one matches, it is selected automatically. When several match, one has to manually chosen from the list.

The same applies to the protocol of the integration. An integration with a single protocol uses it without asking. An integration with several protocols, such as k8s+pvc and k8s+csi for the Kubernetes integration, requires one to be chosen.

The integration then defines the configuration fields of the app. They are filled from three places, in order of precedence:

1. Resource endpoints and attributes. A managed inventory discovers the endpoints and attributes of the resource. Attributes fill the matching fields, which are then not shown, since the inventory already knows their value.
2. Configuration bundles. A configuration bundle that matches the resource fills the fields it declares. These values can be overridden for the app.
3. Values entered for the app. The remaining fields are entered when the app is set up. The resource pages describe the fields of each integration.

When a bundle has Auto-create connectors enabled and, together with the resource attributes, supplies every required field, its apps are created automatically, without being set up by hand.

Testing the connection

Each app has a Dashboard tab with a Test Connection action. It checks that Plakar Control Plane can reach the resource with the configuration of the app. A failing test points at the configuration or the credentials of the app.

Tasks

Backups, restores and the other operations run as tasks that use apps. Tasks can be created from the dashboard of an app or from scheduling.

Residency

Apps can only be used together when their resources have the same residency. A source can only be backed up to a store with the same residency, a restore can only write to a destination with the residency of its store, and a sync can only run between stores with the same residency. The residency belongs to the resource, so an app takes on the residency of its resource.

Infrastructure as Code

Apps can also be managed declaratively with the Kubernetes operator, the Terraform provider and the Ansible collection.

App types
