Edges

By default, Plakar Control Plane (PCP) runs scheduled operations from the Control Plane appliance. This works well when the resources you want to protect are reachable from the appliance.

For environments where resources are spread across different networks, or where the Control Plane should not have direct access to them, you can run operations through an edge.

An edge is a lightweight executor that runs in the environment where the resources you want to protect are located. It connects to PCP, receives work from the Control Plane, performs the operation locally, and reports the result back.

This lets the Control Plane coordinate protection without needing direct connectivity to every source and destination.

When to use an edge

An edge is useful when the systems being protected are not directly reachable from the Control Plane, when it is more efficient to run the operation close to those systems, or when the appliance on its own cannot keep up with the work.

For example, you might deploy an edge inside a datacenter containing virtual machines and databases, while the Control Plane runs elsewhere. The edge can then access those resources locally without exposing them to the Control Plane network.

Edges are also how a deployment scales. Every operation an edge runs is work the appliance does not run itself, so adding edges increases how much protection a single deployment can carry out at once, without resizing the appliance.

Edges are particularly useful for:

• Protecting resources behind private networks, firewalls, or NAT gateways.
• Running operations close to the data to reduce unnecessary network traffic and latency.
• Distributing work across multiple executors so that protection scales beyond what one appliance can run.
• Keeping the Control Plane isolated from networks containing protected resources.

An edge belongs to a single organization. You can only access the edges belonging to the organization you are signed in to, subject to your permissions for that organization.

Architecture

The Control Plane remains responsible for coordinating protection. It schedules operations, manages inventories, stores metadata, and resolves the secrets required to perform a task.

The edge is responsible for executing the operation. It connects to the Control Plane and accesses the source or destination from its own network.

A deployment can contain multiple edges in different environments:

flowchart LR
  PCP["Plakar Control Plane"]

  subgraph Site1["Datacenter A"]
    Edge1["Edge"]
    VM1["Virtual Machines"]
    DB1["Databases"]
  end

  subgraph Site2["Remote Office"]
    Edge2["Edge"]
    NAS["NAS"]
    Files["File Servers"]
  end

  PCP -->|Assign task| Edge1
  PCP -->|Assign task| Edge2

  Edge1 --> VM1
  Edge1 --> DB1

  Edge2 --> NAS
  Edge2 --> Files

The important part of this architecture is that the Control Plane does not need direct access to the protected resources. It only needs to communicate with the edges. Each edge must be able to reach both the Control Plane and the resources it is responsible for.

How an edge works

An edge is enrolled once with the Control Plane. During enrollment, PCP gives the edge an authentication token that it stores locally.

After enrollment, the edge maintains its connection to PCP by polling for work. When a scheduled operation is assigned to it, PCP provides the information and secrets required to perform the operation. The edge then connects directly to the source, store or destination, performs the operation, and reports its status to PCP.

sequenceDiagram
  participant Edge as plakar-edge
  participant PCP as Plakar Control Plane
  participant Target as Source / Destination

  Note over Edge,PCP: One-time enrollment
  Edge->>PCP: Register with enrollment key
  PCP-->>Edge: Authentication token

  Note over Edge,PCP: Task execution
  PCP->>Edge: Assign task
  PCP-->>Edge: Resolve and provide required secrets
  Edge->>Target: Execute operation locally
  Target-->>Edge: Result
  Edge-->>PCP: Report task status

Because the edge initiates communication with PCP, you do not need to expose an edge to inbound connections from the Control Plane. This also makes it suitable for environments where inbound connectivity is restricted.

Requirements

An edge needs network access to two things:

• The Plakar Control Plane, over HTTP or HTTPS.
• The systems and services it is expected to protect.

The Control Plane itself does not need network access to those systems. The edge provides that connectivity when it executes a task.

Enable edge enrollment

Before an edge can join an organization, edge enrollment must be enabled for that organization. Enrollment is disabled by default.

New edges authenticate using an enrollment key generated by the Control Plane. The key is used when an edge connects to PCP for the first time and exchanges it for an authentication token.

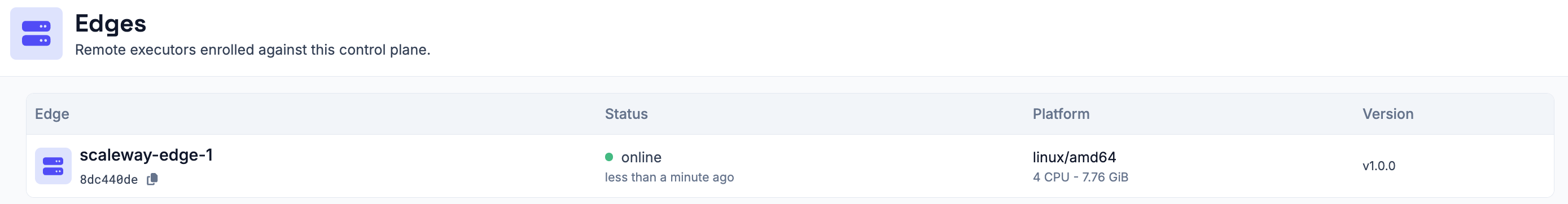

Edges work within an organization. You work only with the edges of the organization you signed in to, and what you can do with them is determined by the permissions your application user has on the organization.

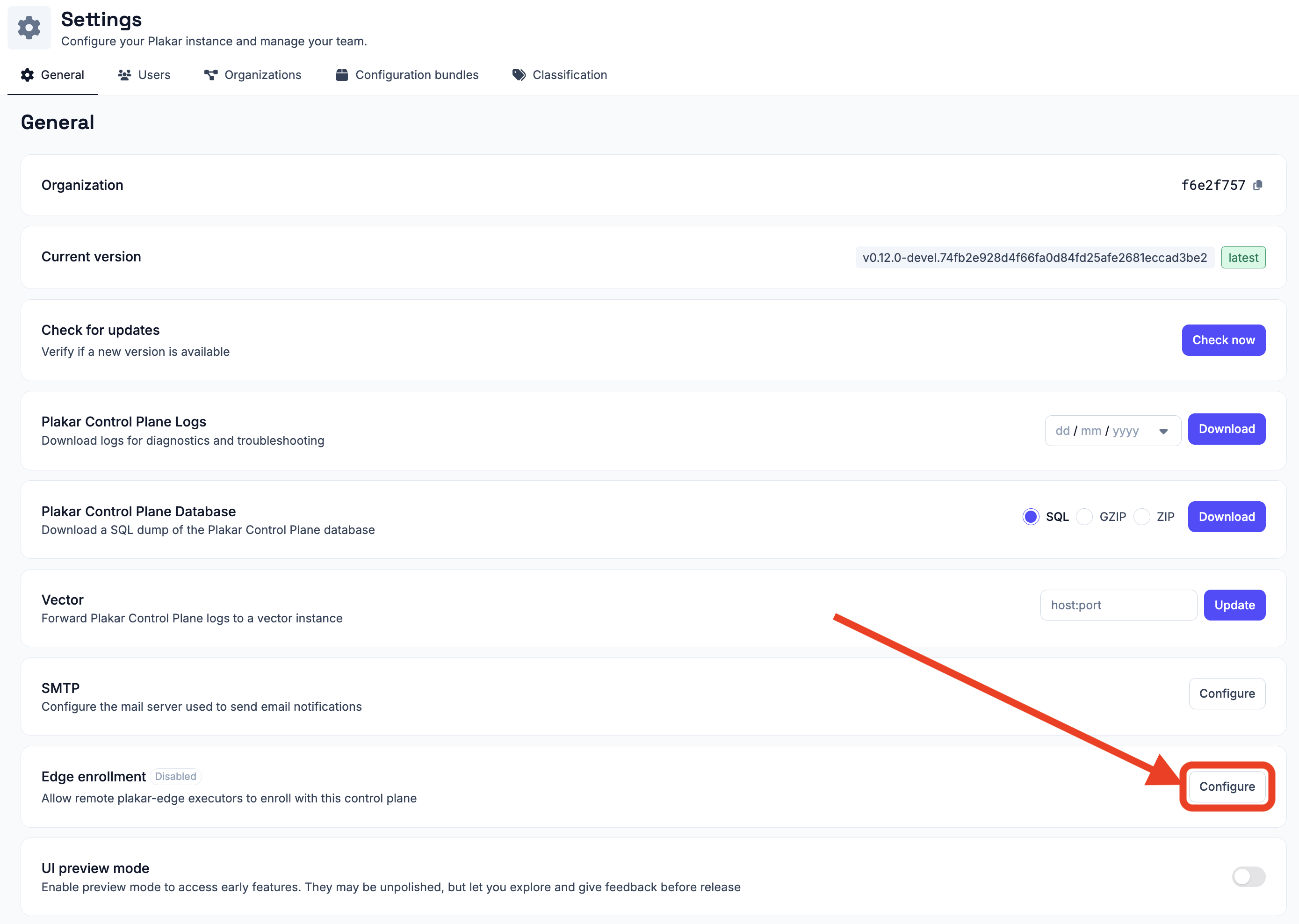

To enable enrollment, open the organization’s settings and enable Edge enrollment under Settings -> Organizations -> [your organization] -> Settings. Enable it for the organization where the new edge should be registered.

Keep enrollment enabled while you are adding edges. Once an edge has successfully enrolled, it no longer depends on the enrollment setting. PCP has issued it an authentication token, which the edge stores locally and uses for subsequent connections.

You can therefore disable edge enrollment after you have finished registering your edges. Disabling enrollment prevents new edges from joining the organization, but does not affect edges that are already enrolled.

If you need to add another edge later, enable enrollment again before starting its first connection to PCP.

You can regenerate the enrollment key at any time. If you regenerate it, use the new key when enrolling subsequent edges.

Installing an edge

An edge can run either as a standalone binary or as a Kubernetes workload. Choose the deployment method that best fits the environment where the edge will run.

$ make
# OR
$ go build -o plakar-edge .

$ plakar-edge \
  -control-plane https://plakman.example.com \
  -enroll <enrollment-key> \
  -organization <organization-id> \
  -name edge-paris-1 \
  -tags env:prod,zone:eu-1 \
  -state-dir /var/lib/plakar-edge \
  -pkg /var/lib/plakar-edge/pkgs

$ plakar-edge \
  -control-plane https://plakman.example.com \
  -name edge-paris-1 \
  -tags env:prod,zone:eu-1 \
  -state-dir /var/lib/plakar-edge \
  -pkg /var/lib/plakar-edge/pkgs

env:prod,zone:eu-1

ghcr.io/plakarkorp/plakar-edge
oci://ghcr.io/plakarkorp/charts/plakar-edge

$ kubectl create secret generic plakar-edge-enroll-key \
  --from-literal=enroll-key=<enrollment-key>

$ helm install my-edges oci://ghcr.io/plakarkorp/charts/plakar-edge \
  --set controlPlane=https://plakman.example.com \
  --set organization=<organization-id> \
  --set enrollKey.secretName=plakar-edge-enroll-key \
  --set replicaCount=3

--version <version>

$ helm show values oci://ghcr.io/plakarkorp/charts/plakar-edge

Supervision and metrics

An edge can expose a small HTTP server for health checks and monitoring.

The server listens on 127.0.0.1:9877 by default. If an external monitoring system needs to access it, configure -listen with an address reachable from that system.

The server provides three endpoints:

• /health reports whether the edge process is running. It returns 200 OK while the process is alive.
• /ready reports whether the edge has successfully enrolled and is polling the Control Plane. It returns 200 OK when ready and 503 otherwise.
• /metrics exposes host, process, Go runtime, and node-exporter metrics in Prometheus format.

The /metrics endpoint can be disabled with -metrics=false.

For Kubernetes deployments, these endpoints are primarily useful for external monitoring. The edge itself does not require inbound connectivity to perform its normal work.

Secrets

Secrets required by a task remain managed by the Control Plane.

When PCP assigns a task to an edge, it resolves the secrets required for that operation and provides them to the edge for the duration of the task. This can include repository credentials such as a repository passphrase.

The edge therefore does not need to maintain a separate copy of the credentials required by every task it executes.

Run tasks on an edge

Scheduled tasks run on the Control Plane by default.

To execute a task through an edge, configure the task to use the desired edge when creating or editing the schedule. The edge then becomes the executor for that task rather than the Control Plane appliance.

This allows you to choose where an operation runs based on the network location of the resources it protects.

See Scheduled Tasks for information about configuring scheduled operations.
